Wastewater Recycling Systems
Using ION Exchange

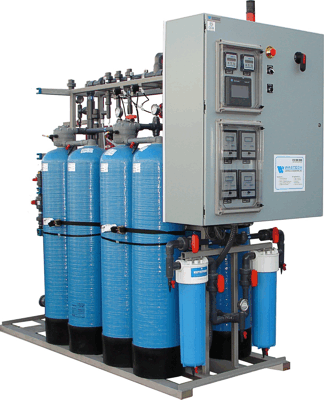

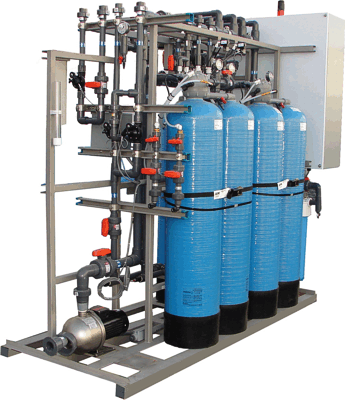

Wastech CIX skid-mounted 10-20 gpm ion-exchange water purification system.

Water Recycling Using ION EXCHANGE Technology

Wastech manufactures industrial water recycling systems for all industrial applications. Water reclamation and reuse have taken on new importance for industrial customers as the cost of raw water rises, discharge violations increase, and drought in the West and Southeast makes water rationing a possibility. Using water once is no longer an option, and industrial customers worldwide rely on Wastech for water reclamation, reuse, recycling, deionization, and filtration systems. Check out our standard rinse water recycling systems.

The patented KINETICO DI valve allows 50% less chemical and 50% less water usage than conventional water deionization systems.

Wastech is a strategic partner with KINETICO and uses KINETICO valves and designs for cost-effective water recycling and generation of high purity water for reuse. KINETICO is a pioneer in industrial water recycling and continues to offer innovative new designs. With Wastech experienced engineers on-site, you will receive a total turnkey package without surprises or cost overruns.

Wastech also offers a complete line of proprietary chemical precipitation chemistries and complete automated hardware packages for their use. Our laboratory will analyze your sample and demonstrate our solution. In addition, pilot equipment is available for rent to validate a solution before you invest.

Complete pretreatment options are also available using activated carbon, filtration bags or cartridges and other media.

Regeneration of resin uses on-site packed bed, countercurrent technology, which minimizes chemical use and waste volume compared to competitive systems. The patented KINETICO valve offers countercurrent regeneration which uses 50% less chemicals and 50% less water than conventional deionization systems. Skid mounted systems eliminate costly servicing of DI bottles and are exempt from on-site hazardous waste regulations. For more technical information, please see our white paper Ion Exchange for Heavy Metal Removal.

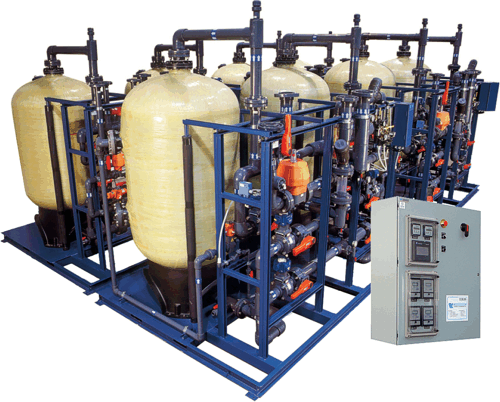

Wastech HFX skid-mounted 35-135 gpm ion-exchange water purification system.

Wastech Skid-Mounted Ion-Exchange Systems

Wastech skid-mounted systems eliminate costly servicing of deionized (DI) water bottles and are exempt from on-site hazardous waste regulations.

  • CIX 5,10 or 20 gpm systems. Closed loop skids for high quality deionized water using duplex cation and anion resin vessels to remove selected heavy metals. Designed for continuous operation, the systems are completely prepackaged and pre-plumbed on a stainless steel skid. Premium, long-life, quality resins are selected to match the application. This are totally automated systems with a UL rated, CSIA certified control panel, an Allen Bradley touchscreen, and a PLC with Wastech licensed software. The capacity of the resins is optimized for the application, and the system is totally monitored.

  • HFX 35, 55, 75, 115 & 135 gpm systems. Closed loop skids for removing Total Dissolved Solids (TDS) effectively and economically. A modular design available in both duplex and simplex configurations to produce pure deionized water. The systems enable continuous operation with 100% component redundancy. Totally automated with UL rated controls, Allen Bradley touch screen, and PLC with communication options. No operator programming is required. Wastech's HELPNET insures timely support online with now waiting for a factory representative to arrive on-site.

Wastech is prepared to add options as needed, including booster pumps, neutralization systems, DI water storage, re-pressurization, and ultraviolet disinfection. Wastech engineering and KINETICO equipment insure a reliable water treatment solution.
