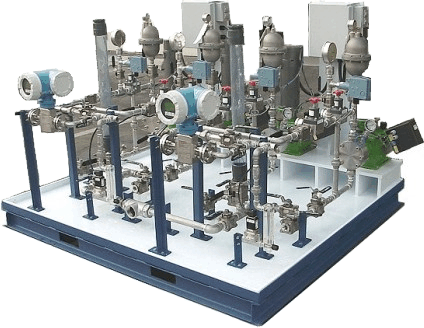

Packaged Pump Skids
“Building
on site would have taken two trades and fifteen deliveries, with no one
taking
responsibility.”
Project
Superintendent
|
 |
|
Process water
cooling package with heat exchanger and filtration.
|
|
Wastech Controls will
engineer any industrial liquid process into a skid mounted package.
|
| Wastech has experienced
process and control engineers who will take your process
and provide a total solution. Using metering pumps,
calibration columns, pulse dampeners, pressure and flow
instrumentation, actuated and manual valves, many types
of pumps and a UL rated control panel, your application
arrives on the job ready to be installed. Metering pump
assemblies can be enclosed in custom metal or plastic
enclosures to eliminate fumes or noise. Pump platforms
can include heat exchangers, filters, custom manifolds
and other accessories. A custom electrical control panel
allows one point hookup and may include HMI
touchscreens, PLC control, SCADA communication, 24/7
alarm reporting to beepers or cell phones. |
 |
| Our
CDS Chemical Dispense Station or Glycol Feed System
automatically dispenses metered amounts of any chemical
on demand, including viscous fluids. It comes with a
NEMA 4X control panel with ON/OFF, HOA switches and a
fused receptacle. It is fully wired with all piping, a
check valve, pressure switch, and isolation valve.
Standard features include a 15, 30, 55, or 100 gallon
tank with hinged cover, and a 5.5, 8.5, 12 or 20 GPH
automatic metering pump. |
 |
Bleach
injection skid with four DC drive metering pumps.
 |
 |
Chemical dispensing
pump package
(interior view)
|
Chemical dispensing
pump package
(exterior view)
|
 |
 |
| Pumping and filtering
System |
Enclosed bleach
pumping system |
| |
|
