Applications
- Reduced liability with on-site
destruction of hazardous waste.
- Up to 10 gpm maximum throughput.
- COD destruction.
- Cyanide, MTBE destruction.
- Drinking water, process water, waste
water applications.
- Ultra pure water protection.
- Effective against chloroethylene’s,
chlorinated solvents, pesticides, polychlorinated biphenyls, phenolic
compounds, jet fuel and all hydrocarbons.
- Specific contaminant destruction such as
oil, soaps and other contaminants that can be reduced below discharge
limits.
Complete
Waste Destruction
Chemistry

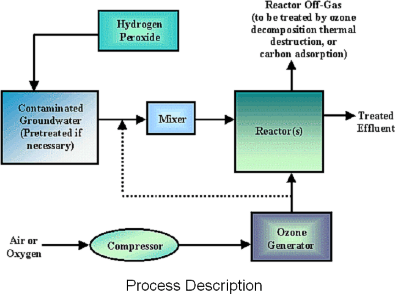

- Designed for on-site organic waste
destruction
- Hydrogen Peroxide and/or Ozone react to
produce hydroxyl radicals (OH-)
- UV light multiplies the effectiveness of
OH-
- Low pressure, high output UV for peak
performance at all temperatures.
- Superior TOC (Total Oxidizable Carbons)
reduction
- Indiscriminate destruction of Organic
compounds
- No waste produced, onsite destruction

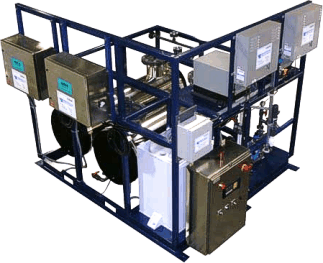

Standard Features
-
 Stainless Steel construction
- Complete system with all components skid
mounted
- Modular UV reactors that can be added to
a base unit
- Onboard Ozone and Oxygen production
- Low pressure, high output or Amalgam
lamps
- Continuous process cycle with various
output volumes
- Small footprint – base package 36”x 54”
x 72” high
- Complete NEMA 4X control panel:
- PLC control
- Simple lights and switches
- Automatic chemical dispensing
- Pump control
- Operational alarms and communication
 |
 |
|

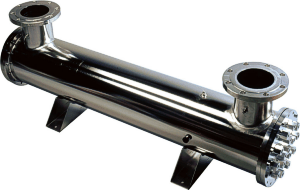

Stainless Steel
Reactor Chamber |
Easy UV Bulb
Replacement |
Options
- All Stainless Steel piping
- Secondary containment for the entire
skid
- Remote Ozone monitor
- Degassifier and ozone destruction
- Various communication options for remote
monitoring
- Touchscreen as an operator interface
- Remote mounted control panel also
available
- Transfer pump station
- Remote tank level sensors for auto
control
Operational Guidelines
- Fully automatic operation
- Bulbs reduce output 10% every 8000 hours
- Water must be clear to allow for benefit
of UV
- Suited to organic concentrations below
5000ppm
Materials of Construction
- 316 Polished SS reactors
- Skids are powder coated steel
- Std control panel powder coated steel
Utility
Specifications
|
Detail |
Specification |
Description |
|
Water Inlet Connection |
1.5” |
Slip union |
|
Effluent Outlet Connection |
1.5” |
Slip union |
|
Drain Connection |
1” |
Slip |
|
Module Light Output |
2.1 kW |
|
|
Module Size |
54” x 32” x 75” |
|
|
Current Draw |
35 amps |
Base module |
|
Current Draw
(additional mods) |
50 gpm |
Stainless |
|
Process Pump |
50 gpm |
Stainless |
|
Metering Pump |
3.2g ph |
|
|
Flow Control |
Rotometer/Manual Valve |
PVC |
|
Ozone Generation |
29 gph |
10 psi |
|
Alarms |
Yes |
Flow, pressure, temp |
|
PLC Control Panel |
Push Button Start |
NEMA 4X |
Available
Models
|
Low Pressure |
Output |
Amalgam |
Output |
|
AOT-100 |
2.1 kW |
AOT-100A |
5.2 kW |
|
AOT-200 |
4.2 kW |
AOT-200A |
10.4 kW |
|
AOT-300 |
6.3 kW |
AOT-300A |
15.6 kW |
|
AOT-400 |
8.4 kW |
AOT-400A |
20.8 kW |
