Mechanical contractors are often required to include control panels in their bid, and they tend to wait until the last minute. Wastech is there to help them. Try this link to close the deal.

Wastech engineers have the knowledge of control design, panel options and software issues to make the process simple. These projects always require immediate drawing submittals. Wastech can provide engineering drawings quickly, and we seldom need more than minor revisions, since our package is always complete.

The installed unit comes with CAD wiring diagrams included in the box, all wires are labeled and color coded, and the drive is programmed during startup by one of our engineers.

You will never be embarrassed by a Wastech panel!

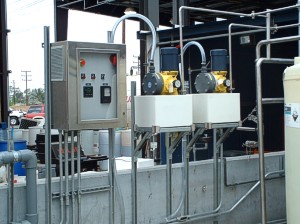

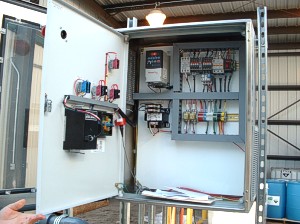

In the application to the right, the contractor had a large neutralization system using an existing 10,000-gallon tank, which was mixed using two large recirculation pumps. Two large motor-driven metering pumps with 1.5 HP motors required a three-phase panel, a VFD (variable frequency drive), a pH controller, a Wastech series 800 strip-chart recorder, a disconnect (required for three-phase power), an E-stop, and HOA switches. The panel was specified stainless steel and required a glass door (which we had in stock). The tricky part was a poorly defined ventilation requirement. Wastech designed high and low louver vents, and presented the concept to the consulting engineer.

The project came in under the contractor’s budget (much to his surprise), and Wastech's quality made the entire process painless.
