Applications
- Reduced liability with on-site destruction of hazardous waste.
- Up to 10 gpm maximum throughput.
- COD destruction.
- Cyanide, MTBE destruction.
- Drinking water, process water, waste water applications.
- Ultra pure water protection.
- Effective against chloroethylene's, chlorinated solvents, pesticides, polychlorinated biphenyls, phenolic compounds, jet fuel and all hydrocarbons.
- Specific contaminant destruction such as oil, soaps and other contaminants that can be reduced below discharge limits.
Complete Waste Destruction
Chemistry
- Designed for on-site organic waste destruction
- Hydrogen Peroxide and/or Ozone react to produce hydroxyl radicals (OH-)
- UV light multiplies the effectiveness of OH-
- Low pressure, high output UV for peak performance at all temperatures.
- Superior TOC (Total Oxidizable Carbons) reduction
- Indiscriminate destruction of Organic compounds
- No waste produced, onsite destruction
Standard Features
- Stainless Steel construction
- Complete system with all components skid mounted
- Modular UV reactors that can be added to a base unit
- Onboard Ozone and Oxygen production
- Low pressure, high output or Amalgam lamps
- Continuous process cycle with various output volumes
- Small footprint – base package 36"x 54" x 72" high
- Complete NEMA 4X control panel:
- PLC control
- Simple lights and switches
- Automatic chemical dispensing
- Pump control
- Operational alarms and communication
 |
 |
|

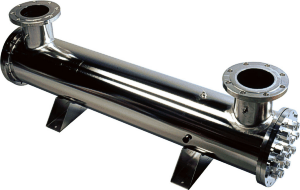

Stainless Steel Reactor Chamber
|
Easy UV Bulb Replacement
|
Options
- All Stainless Steel piping
- Secondary containment for the entire skid
- Remote Ozone monitor
- Degassifier and ozone destruction
- Various communication options for remote monitoring
- Touchscreen as an operator interface
- Remote mounted control panel also available
- Transfer pump station
- Remote tank level sensors for auto control
Operational Guidelines
- Fully automatic operation
- Bulbs reduce output 10% every 8000 hours
- Water must be clear to allow for benefit of UV
- Suited to organic concentrations below 5000ppm
Materials of Construction
- 316 Polished SS reactors
- Skids are powder coated steel
- Std control panel powder coated steel
Utility
Specifications
|
Detail
|
Specification
|
Description
|
|
Water Inlet Connection
|
1.5"
|
Slip union
|
|
Effluent Outlet Connection
|
1.5"
|
Slip union
|
|
Drain Connection
|
1"
|
Slip
|
|
Module Light Output
|
2.1 kW
|
|
|
Module Size
|
54" x 32" x 75"
|
|
|
Current Draw
|
35 amps
|
Base module
|
|
Current Draw
(additional mods)
|
50 gpm
|
Stainless
|
|
Process Pump
|
50 gpm
|
Stainless
|
|
Metering Pump
|
3.2g ph
|
|
|
Flow Control
|
Rotometer/Manual Valve
|
PVC
|
|
Ozone Generation
|
29 gph
|
10 psi
|
|
Alarms
|
Yes
|
Flow, pressure, temp
|
|
PLC Control Panel
|
Push Button Start
|
NEMA 4X
|
Available Models
|
Low Pressure
|
Output
|
Amalgam
|
Output
|
|
AOT-100
|
2.1 kW
|
AOT-100A
|
5.2 kW
|
|
AOT-200
|
4.2 kW
|
AOT-200A
|
10.4 kW
|
|
AOT-300
|
6.3 kW
|
AOT-300A
|
15.6 kW
|
|
AOT-400
|
8.4 kW
|
AOT-400A
|
20.8 kW
|
